Edit
Change Garment Color
Raspberry AI
Edit

Change Garment Color

Use intelligent masking to change garment and accessories colors.

1

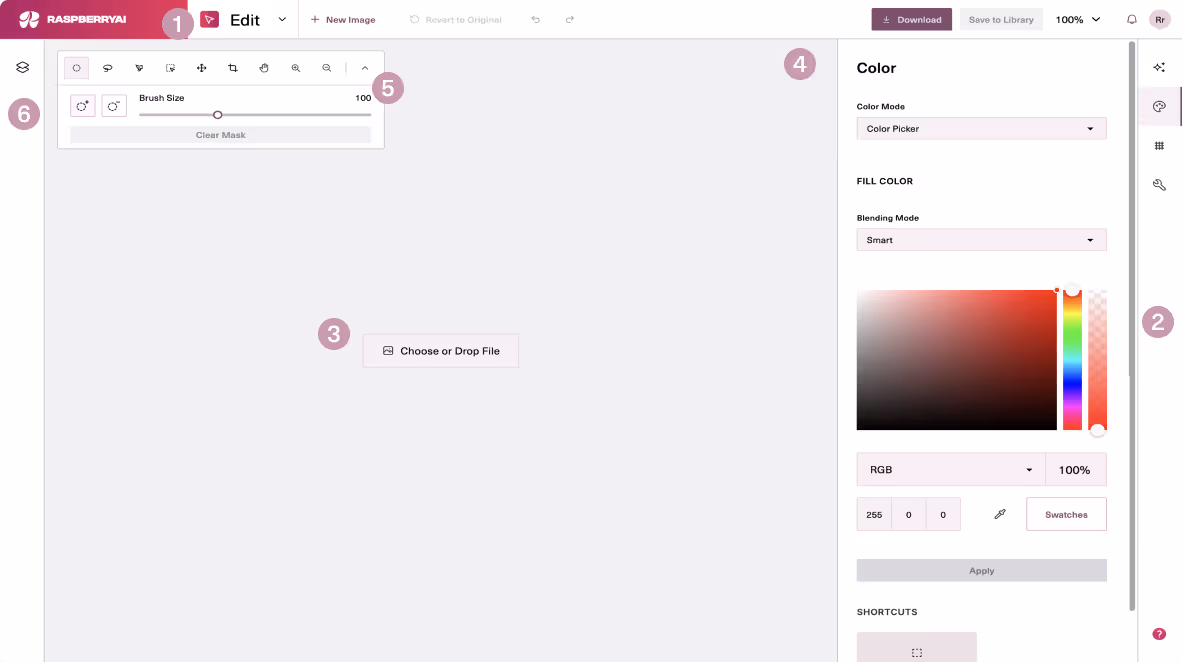

UI Overview

1

Top Bar

Option
Description
New Image
Clears image
Revert to Original
Undo
Redo
Leave Us Feedback
Download
Save to Library
100%
Zoom functions
2

Right Tab Bar

Option
Description
AI Prompts
Use prompting to make alterations to images
Color
Change colors to selected area using intelligent masking
Pattern
Add print or pattern to masked area of image
Material
Add material swatch to masked area of image
Basic
Tools to make overall adjustments to lighting and saturation
Chat
Berry, our AI chat bot!
Help
Tutorial GIFs
3

Choose or Drop File

Option
Description
Choose or Drop File
Adds image file you wish to edit
4

Color Panel

Option
Description
1
Blending Modes
2
Color Picker
3
Hue Selection
4
Opacity
5
RGB or HSV dropdown
6
Import Color from File
To use eyedropper
7
Change Background Color
Automatically changes neutral backgrounds to same color chosen on Color Picker gradient.
5

Tools

Option
Description
Add Smart Mask
Use this tool to automatically select large areas of your image.
Exclude Smart Mask
Use this tool to deselect large areas of your image.
Draw Mask
This brush tool allows you to select specific areas of your image.
Remove Mask
This brush tool allows you to erase portions of your mask.
Transform
Scale elements after upload
Crop
Pan
Clear Mask
Delete mask entirely.
6

Elements

Option
Description
Elements
Add Trims and Notions
2

Upload Image

3

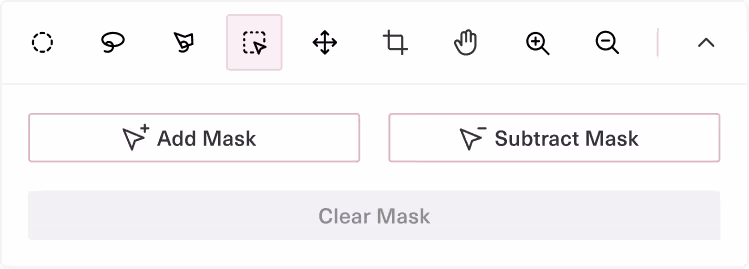

Create a Mask

Option
Description
Add Smart Mask
Use this tool to automatically select large areas of your image.
Exclude Smart Mask
Use this tool to deselect large areas of your image.
Draw Mask
This brush tool allows you to select specific areas of your image.
Remove Mask
This brush tool allows you to erase portions of your mask.
Brush Size Slider
This slider increases and decreases the size of the brush you use to Draw and Remove mask.
Clear Mask
Delete mask entirely.

After uploading your image, masks are the next step in the Edit Module. You’ll Smart Select or Draw a mask over the area of your image you would like to change.

Smart Masks

Smart Masks allow you to select and de-select large areas of the image. If “Add Smart Mask” selects areas you do not want to change, you can click on those stray areas using “Exclude Smart Mask”.

Draw Masks

Draw Masks allow you to use your mouse to draw a mask over your image. You can use “Draw Mask” to add a mask and “Remove Mask” to erase areas of the mask.

4

Use Color Picker

General Tips
Use the color picker to choose a color, and the color will be previewed. The horizontal axis adjusts saturation from pure color to grey. The vertical axis adjusts brightness from black to full color at the top of the gradient. You can also adjust the overall Hue using the vertical Hue Selections slider, and the opacity of the new color using the vertical Opacity slider. Lastly you can enter specific values used to define colors in the RGB model.
5

Import Color from File

Upload an image and use eyedropper tool to select color to match. You can upload a JPEG or PNG of a color swatch from your own palette, Coloro or from Pantone.com. If a solid color is uploaded the color picker will automatically match the swatch.

6

Blending Modes

Blending Modes control how the new color you have selected interacts visually with the original color by determining how they will mix. Experiment to find the one that works best for your projects.

Option
Description
Smart
Uses AI to boost intelligent masking, preserving shadows and light from original image.
Normal
Adds solid color without any blending. Pixels of color fully replace those beneath.
Multiply
Multiplies the color values of the top layer with the bottom layer, resulting in a darker image. Used to darken images, add shadows, or combine textures.
Color Burn
Darkens the bottom layer while increasing the contrast, intensifying shadows and boosting saturation. Used for creating dramatic shadows or adding aged or gritty effects.
Screen
The opposite of Multiply, it lightens the image. Used to brighten images or add glow effects.
Color Dodge
Brightens the bottom layer while reducing contrast, creating a glowing effect. Used to create shiny effects, glowing highlights, or dramatic lighting.
Overlay
Boosts contrast to add texture to an image.
Soft Light
Applies a gentle lightening or darkening effect based on the top layer’s colors.
Hard Light
Similar to Overlay but with more intensity. Used for bold, dramatic contrast effects.
Luminosity
Blends the brightness of the top layer with the hue and saturation of the bottom layer. Used for precise control over brightness without affecting the color.
7

Save Options

Hit Apply to confirm changes.

At the top right corner, you can save your image In Current Resolution, In Super Resolution for 4K, and Enhance and Download which doubles the resolution and adds more contrast and shadows. You can also Save to your personal cloud Library in Raspberry.
